SmartPick

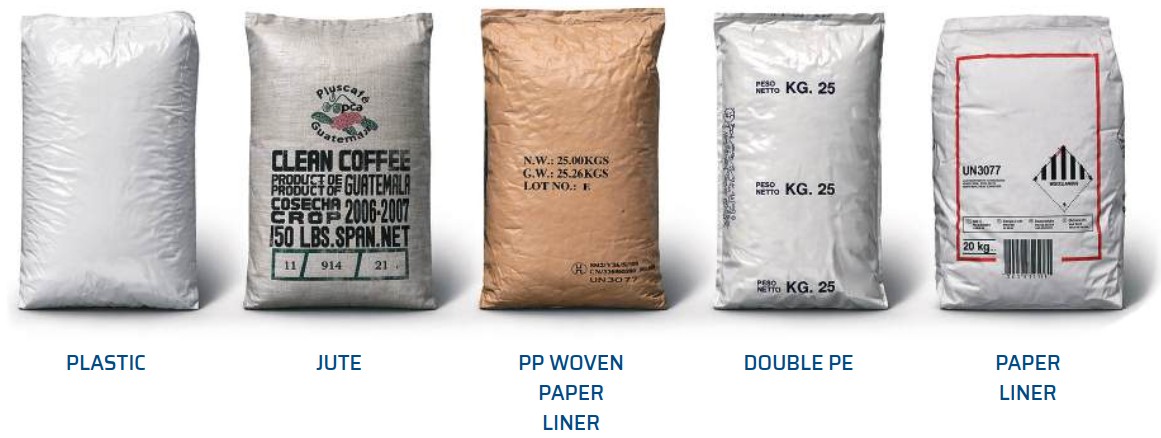

SmartPick is a robotic system that picks bags from one or more pallets, opens and empties them, and dose the powder or granules contents automatically following a recipe!

SmartPick is a patented robotic bag-opener, offered worldwide by F.lli Sacchi only.

The bag is handled and cut by an anthropomorphic robot, this guarantees the reliability, traceability and high production levels.

Contact us for more details
SmartPick per ricette a numero sacchi
SmartPick per ricette gravimetriche a peso
SmartPick - Runner per ricette flessibili, espandibile nel tempo
SmartPick Runner con bilance mobile, per ricette flessibili a batch

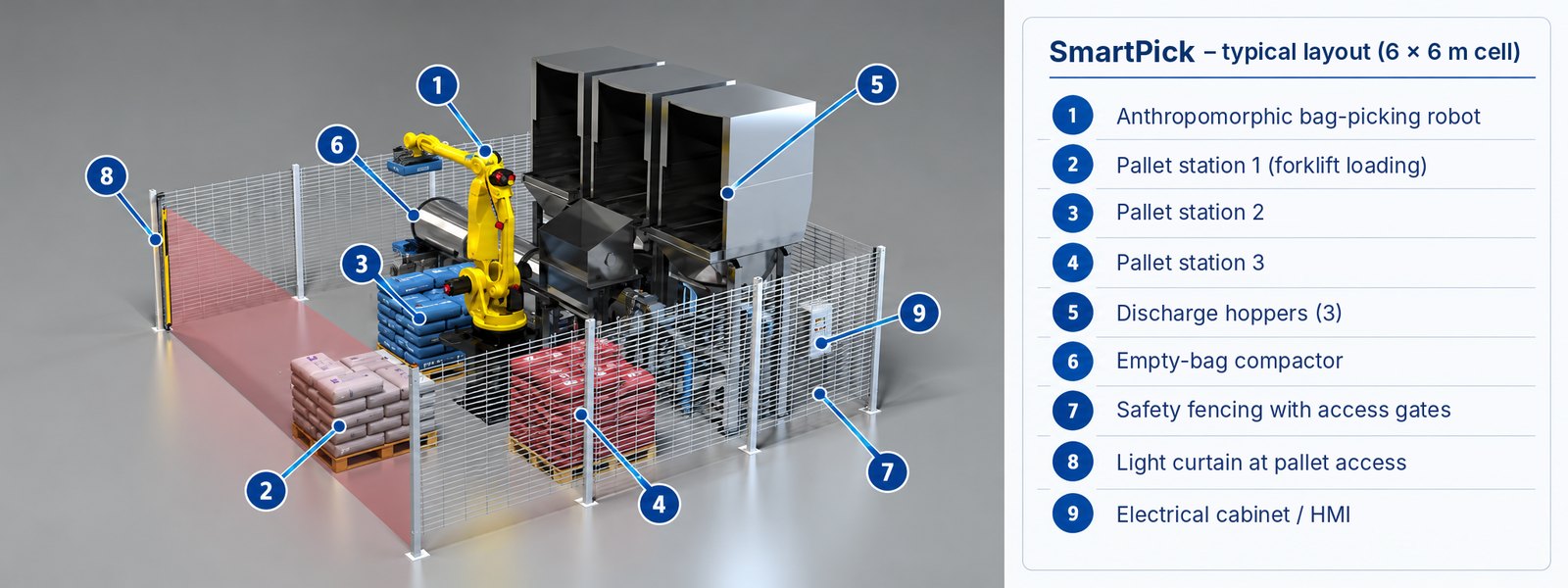

SmartPick is a robotic cell where bags are de-palletized and opened with a cutting system and it is composed of :

  • One or more fix pallet stations or roller conveyors to make pallet enter the robot area

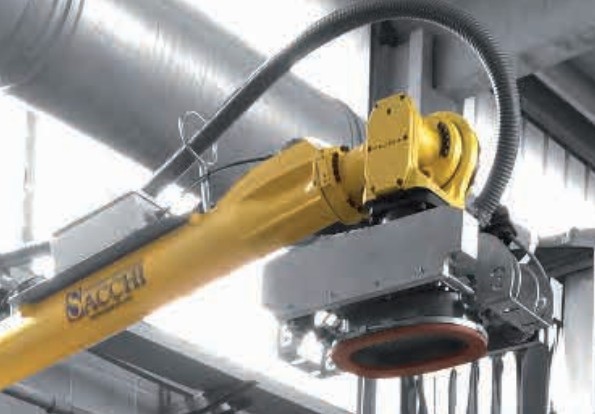

  • One multiaxial anthropomorphic robot that, thanks to a patented gripping head equipped with sensors system and to SmartPick-AT software, can recognize, depalletize and pick one bag at a time
  • One or more bag cutting and emptying station (bag cutting hopper)
  • One or more compacting units for empty bags
  • Dedicated SmartPick-AT software with a simple and intuitive interface

SmartPick:

  • depalletizes and cuts bags in automatic mode from one or more pallet positioned in one or more cutting stations.
  • manages, stores, sets recipes.
  • manages the traceability of raw material.
  • manages pallet call from the storehouse.
  • it's now protected by five patents which include bag-cutter system, bag gripping, bag cleaning, bag opening/cutting, bag emptying, and software.
  • It's currently the only bag-opening / bag-emptying system in the world certified by several multinational corporations for food, baby food, and pharma field.
  • It has been approved by ASL as the solution to problems coming from bag handling and exposure to powders.
  • hundreds of customers, looking for bags lifter, have chosen SmartPick. It replaces standard bags lifter and also automatizes bag cutting.
  • it's easy to clean (production change involves only suction of a hopper) and by installing more hoppers, cleaning is no more necessary!
  • it's modular and can be configured to handle from 1 to 20 pallet at the entry side and as many emptying stations.

The robotic depalletization system has been created to handle bags and it has been also adjusted for the handling of boxes and palletized drums, in order to put the contents into the process quickly and safely



 SmartPick Configurations
 The SmartPick installations
 The experience of SmartPick
 The SmartPick software
